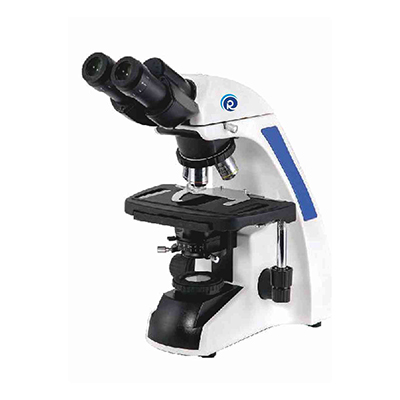

Description
| Observation Head | Seidentopf Trinocular Head inclined 30˚ rotatable at 360˚ and diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 48mm to 75mm. |
| Magnification | 40x to 1000x. |
| Eye Pieces | ( Anti fungus coated ) 10x (paired) F.O. V 20mm. |
| Objectives | (Anti Mold and Anti fungal coated). S Plan Achromatic 4x, 10x, 40x (S.L.) & 100x Oil (S.L.) |
| Mechanical Body | Co–axial Focusing System. Pre Focusing Lever & Tension Adjustment Ring Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls. Coarse stroke 37.7mm/rotation, fine division 0.002mm.Cross travel 78mm X 54mm. |
| Sub stage Condenser | Abbe Condenser N.A. 1.25 with adjustable iris diaphragm. |
| Illumination System | The illuminator incorporated 3W LED lamp and has adjustable brightness. |
