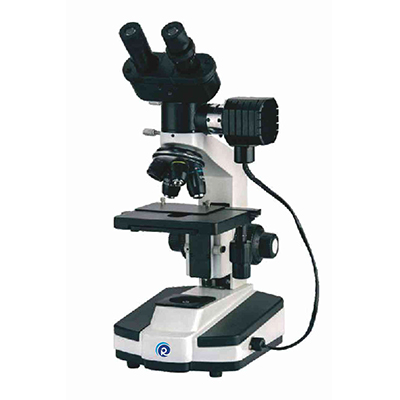

| Observation Head |
Binocular Observation head conveniently inclined at 45˚. |
| Focusing |
Co – axial focusing module with slides travelling on bearing guide ways. |
| Mechanical Stage |
Large graduated mechanical stage with low drive co – axial controls for X–Y movements on the ball slides. |
| Nose Piece |
Quadruple revolving nosepiece for quick magnification change with positive click stops for proper centering. |
| Objectives |
Achromatic Flat – field metallurgical corrected and anti mount fungus M5x, M10x, M45x, & M100x (oil). |
| Eye pieces |
Compensating High eye point wide field eye piece 10x. |
| Magnification |
40x to 1000x. |
| Illumination |
Incident light through Epi – illuminator with field aperture diaphragm and filter slots. Continuously variable luminosity control through built in electronic transformer. |
| Filters |
Green & Blue. |
