Description

Cast Iron Analysis
The dedicated module determines flake size from 1 to 8 as per ASTM, JIS, and BIS & ISO standards. The type distribution percentage A, B, C, D, E is calculated Interactive tools.

Flakes per square mm is also calculated simultaneously.

Percentage of pearlite, ferrite, graphite and carbide is calculated from Etched Sample automatically with predefined values.

SG Iron Analysis

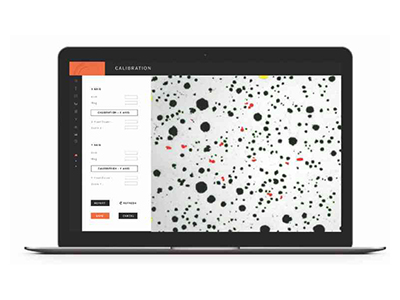

The module automatically analyzed & calculates Nodules/Non Nodules Percentage. Determine its class and number from 1 to 8 as per ASTM, JIS, BIS & ISO standard s, Nodules per square mm is also on Etched sample it reported.

Determine percentage of pearlite, graphite, ferrite and carbide.

Report
Three options: Direct printout with original image processed Image & Tabular Results.

Export to MS Office or Excel for further modification.
