| Observation Head |

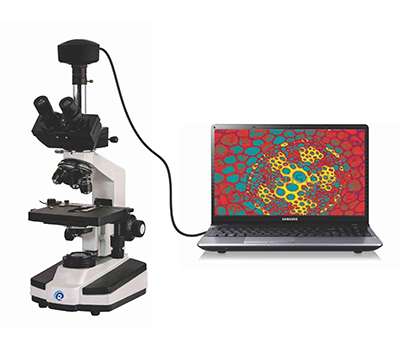

Trinocular 45˚, 360˚ rotatable, with interpupillaryand diopter Adjustment. |
| Magnification |
40x to 1000x. |
| Stand |
Sturdy and Durable pressure Die cast Aluminium stand. |
| Mechanical Stage |
Co – axial low drive double plate mechanism system travel on ball bearing guide ways . |
| Focusing System |
Co – axial coarse & fine mechanism system with ball bearing guide ways. |
| Illumination |
The illuminator incorporated 3W LED lamp and has adjustable brightness. |
| Quadruple Nose Piece |
A precision mechanism ensures the accuracy and optical alignment of the system. |
| Sub stage Condenser |
Abbe type N.A. 1.25 with iris diaphragm for resolution and contrast control. |
| DIN – SP Objectives |
4x, 10x, 40x (SL) & 100x Oil (SL). Anti fungal & infinity corrected. |
| Eye Pieces |
10x paired. Extra wide field, Anti fungal & Anti reflected. |
| USB Digital Camera |
5.0 Megapixel Color CMOS sensor, Size 1/2“, Pixel size 2.2×2.2 micron Resolution 2592×1944 PC interface, 30 bit color depth, exposure time 1 Microsecond to 2 seconds. High Image Transmission convenient to use any standard Microscope. Digital Camera can change image into Digital signal & send it to your P.C. |
