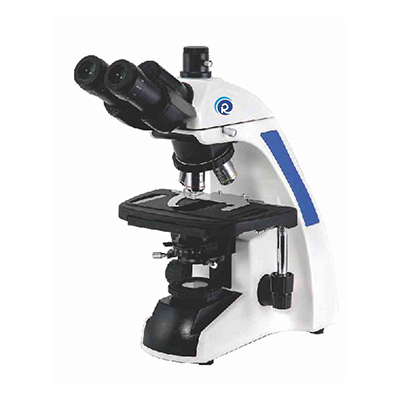

Description
| Observation Head | Seidentopf Binocular Head inclined 30˚ rotatable at 360˚ and diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 48mm to 75mm. |
| Magnification | 40x to 1000x. |
| Eye Pieces | ( Anti fungus coated ) Extra Wide Field 10x (paired) F.O. V 20mm. |
| Objectives | (Infinity Corrected & Anti fungus treated). IOS Plan Achromatic 4x, 10x, 40x (S.L.) & 100x Oil (S.L.) |
| Mechanical Body | Co–axial Focusing System. Pre Focusing Lever & Tension Adjustment Ring. Slot for Polarizer. Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls on ball bearing guide ways. |
| Sub stage Condenser | Abbe Condenser N.A. 1.25 with adjustable iris diaphragm. |
| Illumination System | Illuminator system with ultra high brightness 3W LED lamp brightness control knob. |
